Product Overview

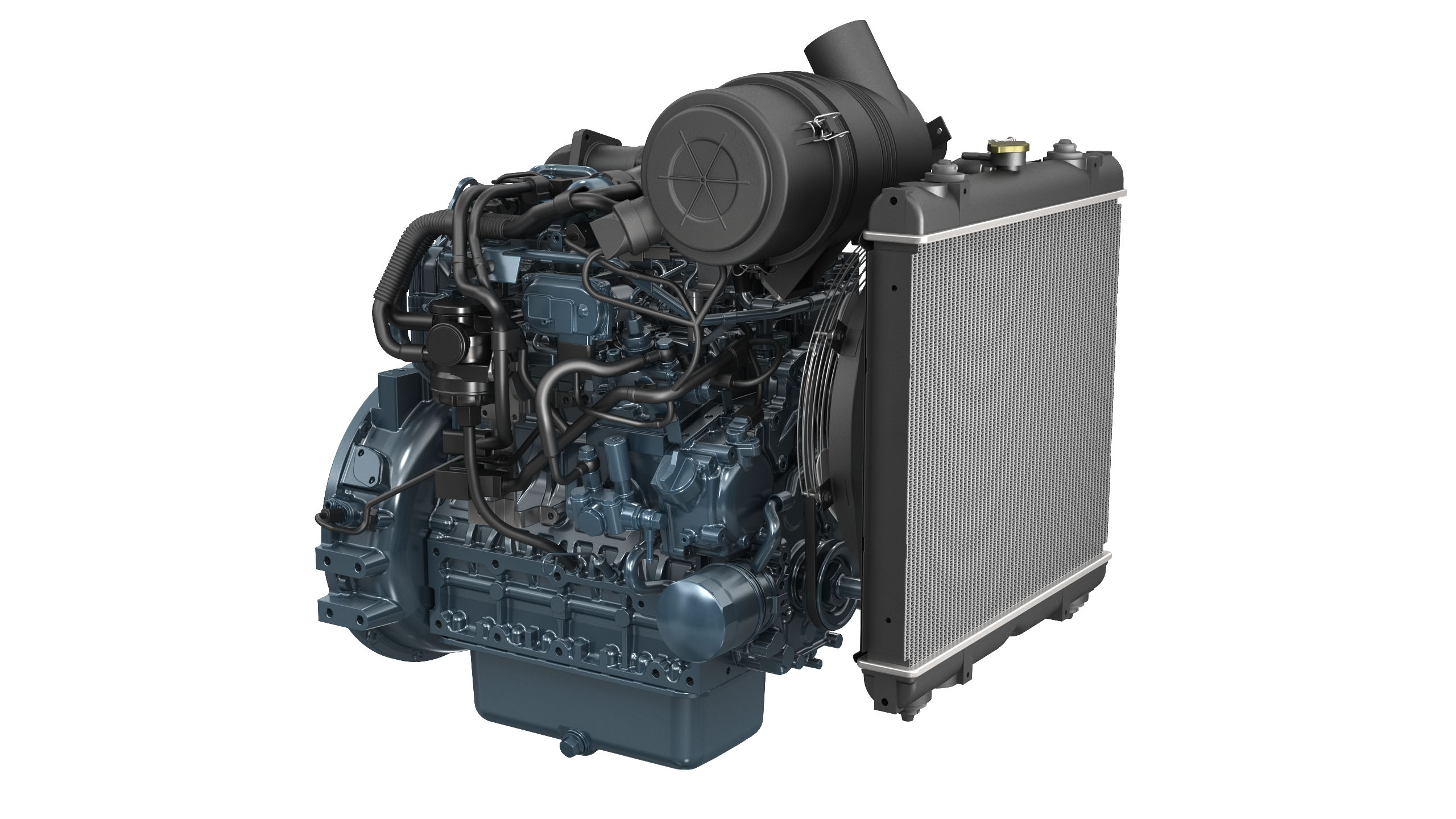

The Kubota V2403 Stage V Diesel Power Pack is a compact, ready to install power solution for industrial and off highway equipment.
The standard specification features the naturally aspirated Kubota V2403 CR E5 engine, a four cylinder, 2.434 litre industrial diesel engine producing 37.4kW at 2700rpm.
Common rail direct injection and an integrated Diesel Oxidation Catalyst and Diesel Particulate Filter provide efficient performance while meeting EU Stage V emissions requirements.
Turbocharged variable speed and specialist constant speed configurations are also available, allowing the power pack to be matched to the output, duty cycle and operating requirements of the intended application.
Standard Power Pack Specification
- Engine model: Kubota V2403 CR E5
- Engine series: Kubota 03 Series
- Engine type: Vertical, four cycle, water cooled diesel
- Number of cylinders: 4
- Displacement: 2.434 litres
- Aspiration: Naturally aspirated
- Combustion system: Direct injection
- Fuel system: Common rail
- Rated output: 37.4kW at 2700rpm
- Rated output: 50.2HP
- Aftertreatment: DOC and DPF
- Emissions compliance: EU Stage V, EPA Tier 4 and CARB Tier 4
Available Engine Configurations
The Kubota V2403 Diesel Power Pack is available with a choice of engine configurations. The correct version will depend on the power requirement, operating speed and intended application.
V2403 CR E5 Naturally Aspirated
- Variable speed engine
- Naturally aspirated
- 37.4kW at 2700rpm
- 50.2HP
- Standard dry weight of 221kg
V2403 CR TE5 Turbocharged
- Variable speed engine
- Turbocharged
- 48.6kW at 2700rpm
- 65.2HP
- Standard dry weight of 233kg
V2403 CR TE5BG2 Constant Speed
- Constant speed engine
- Turbocharged
- 1500rpm operating speed
- 28.1kW standby output
- 25.5kW continuous output
- Standard power pack dry weight of 232kg
- Suitable for applications requiring constant engine speed
The turbocharged and constant speed versions are separate engine configurations. They are not upgrade accessories for the naturally aspirated engine.
Key Features
- Genuine Kubota industrial diesel power pack
- Compact and modular design
- Four cylinder, 2.434 litre engine platform
- Common rail fuel injection
- Direct injection combustion system
- DOC and DPF exhaust aftertreatment
- EU Stage V emissions compliant
- Available in naturally aspirated and turbocharged configurations
- Variable speed and constant speed versions available
- Designed to simplify integration into industrial equipment
Standard Variable Speed Power Pack Specifications
- Bore: 87.0mm
- Stroke: 102.4mm
- Oil pan capacity: 9.5 litres
- Starter: 12V, 2.0kW
- Alternator: 12V, 70A
- Direction of rotation: Counterclockwise when viewed from the flywheel
- Length: 1002mm
- Width: 548mm
- Height: 861mm
The published dimensions apply to the standard variable speed power pack configuration. The dimensions and weight of the supplied unit may vary according to the engine version, accessories and completed specification.
Available Equipment and Accessories
The final power pack can be configured with equipment appropriate to the intended installation. Available equipment may include:
- Radiator
- Cooling fan
- Air filter and intake hoses
- Preassembled DOC and DPF exhaust aftertreatment system
- Intermediate wiring harness
- Application specific electrical connections
- Additional power take off equipment where applicable
Available equipment can vary between engine configurations. Please contact Mitchell Powersystems to confirm the exact contents and specification of the proposed power pack.
Clean and Compact Power
The common rail fuel system provides electronic control of fuel delivery to support efficient combustion, dependable performance and reduced engine noise.
The integrated DOC and DPF exhaust aftertreatment system helps the variable speed V2403 power packs meet EU Stage V emissions requirements. Kubota positions the aftertreatment equipment, air cleaner and cooling components to create a compact package for installations where space is restricted.
Ready to Install
Kubota Diesel Power Packs provide equipment manufacturers and operators with a prepared engine solution that can reduce the development and installation work associated with integrating an industrial diesel engine.
The modular design allows the engine configuration and ancillary equipment to be selected for the intended application. This can reduce installation complexity while providing access to Kubota engine service and parts support.
Applications
The suitability of each power pack configuration depends on the required output, operating speed, installation environment, duty cycle and driven equipment.
Please contact Mitchell Powersystems with details of your application. Our team can help identify whether the naturally aspirated, turbocharged or constant speed configuration is best suited to your requirements.
Why Buy From Mitchell Powersystems?
- Experienced Kubota industrial engine support
- Technical assistance with engine selection and specification
- Support with diesel power pack integration requirements
- Genuine Kubota parts and service support
- UK based workshop and field service capabilities
- Ongoing maintenance and aftersales support
Important Ordering Information
This product is configured according to the requirements of the intended application. The final engine model, included equipment, output, dimensions, weight, availability and price must be confirmed before
