Product Overview

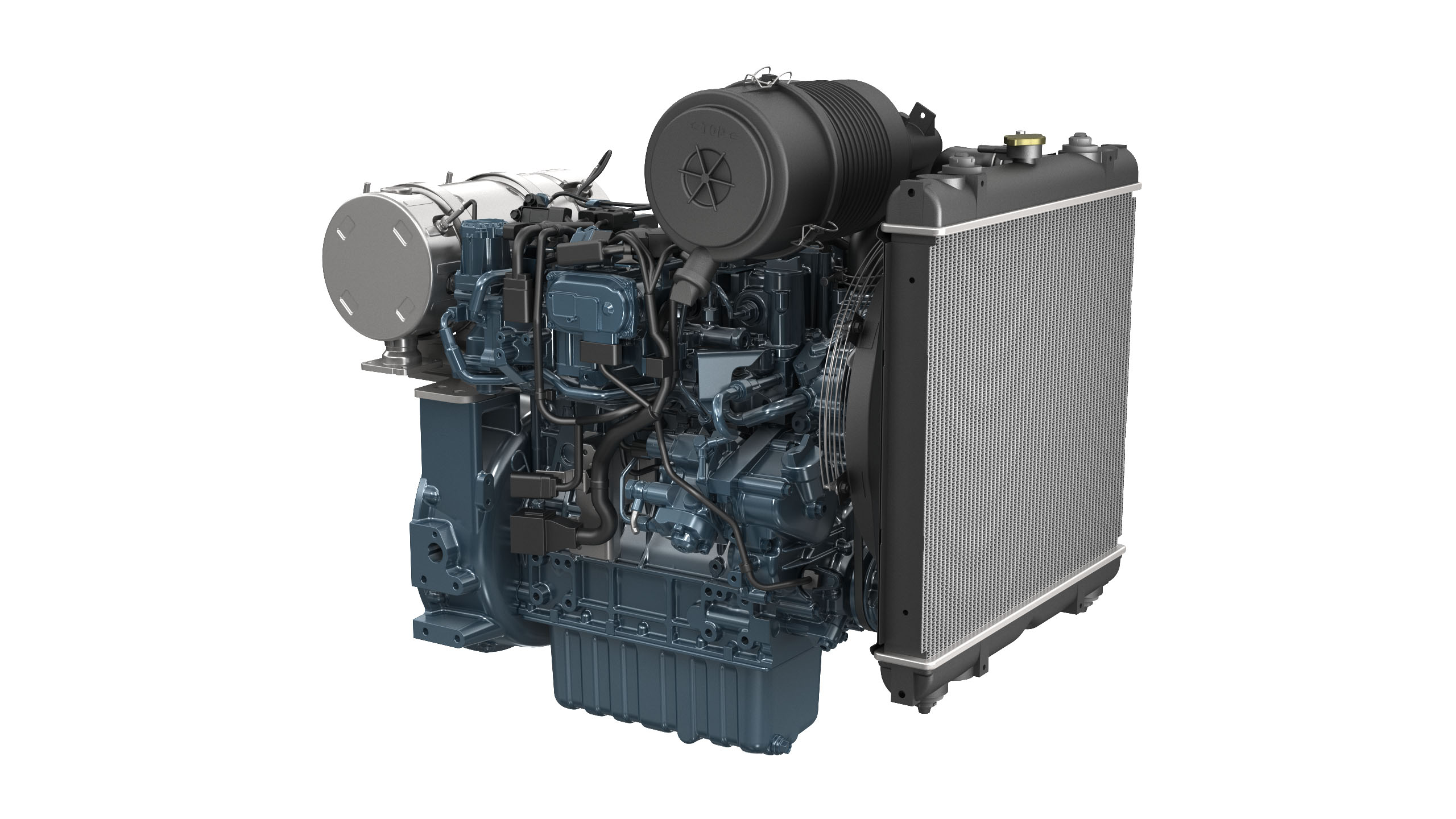

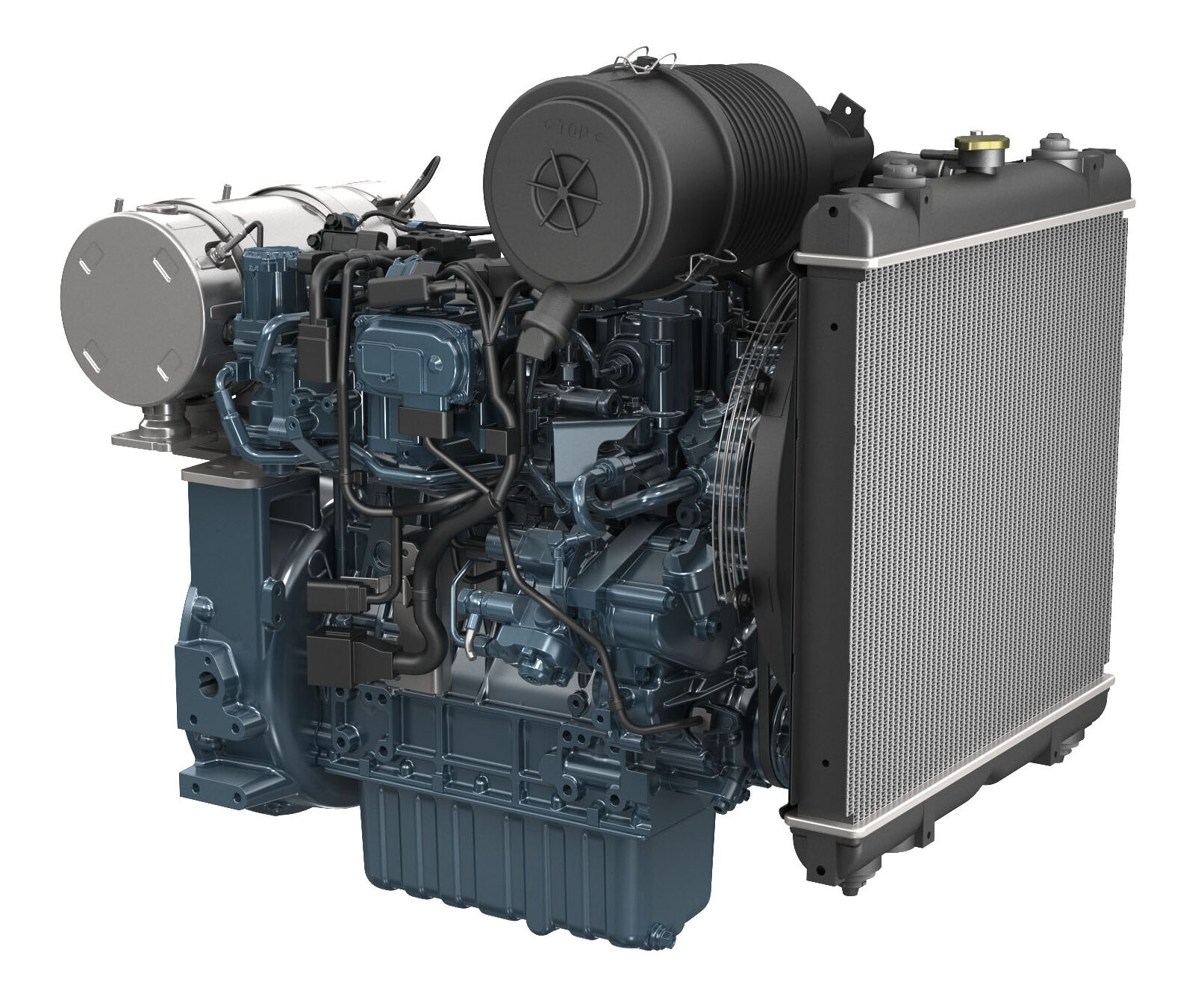

The Kubota V1505 Stage V Diesel Power Pack is a compact, ready to install power solution for industrial and off highway equipment.
Powered by the turbocharged Kubota V1505 CR TE5 engine, this four cylinder, 1.498 litre industrial diesel engine produces 33.0kW at 3000rpm.
Common rail direct injection and an integrated Diesel Oxidation Catalyst and Diesel Particulate Filter support efficient operation while meeting EU Stage V, EPA Tier 4 and CARB Tier 4 emissions requirements.
The compact and modular design helps simplify equipment integration where dependable performance, emissions compliance and efficient use of installation space are important.
Standard Power Pack Specification
- Engine model: Kubota V1505 CR TE5
- Engine series: Kubota 05 Series
- Engine type: Vertical, four cycle, water cooled diesel
- Number of cylinders: 4
- Displacement: 1.498 litres
- Aspiration: Turbocharged
- Combustion system: Direct injection
- Fuel system: Common rail
- Rated output: 33.0kW at 3000rpm
- Rated output: 44.3HP
- Maximum torque: 118.6Nm at 2000rpm
- Aftertreatment: DOC and DPF
- Emissions compliance: EU Stage V, EPA Tier 4 and CARB Tier 4
Key Features
- Genuine Kubota industrial diesel power pack
- Turbocharged four cylinder engine
- Compact 1.498 litre engine platform
- 33.0kW rated power output
- Common rail fuel injection
- Direct injection combustion system
- DOC and DPF exhaust aftertreatment
- EU Stage V emissions compliant
- EPA and CARB Tier 4 emissions compliant
- Compact and modular design
- Designed to simplify integration into industrial equipment
- Ready to install power solution
Power Pack Specifications
- Bore: 78.0mm
- Stroke: 78.4mm
- Oil pan capacity: 6.7 litres
- Starter: 12V, 1.4kW
- Alternator: 12V, 60A
- Direction of rotation: Counterclockwise when viewed from the flywheel
- Length: 920mm
- Width: 533mm
- Height: 816mm
- Standard dry weight: 173kg
The published dimensions and dry weight apply to the standard Kubota power pack specification. The dimensions and weight of the supplied unit may vary according to the included equipment, accessories and completed specification.
Available Equipment and Accessories
The final power pack can be configured with equipment suited to the intended installation. Available equipment may include:
- Radiator
- Cooling fan
- Air filter and intake hoses
- Preassembled DOC and DPF exhaust aftertreatment system
- Intermediate wiring harness
- Application specific electrical connections
Available equipment will depend on the required specification and intended application. Please contact Mitchell Powersystems to confirm the exact contents of the proposed power pack.
Clean and Compact Power
The common rail fuel system provides electronic control of fuel delivery to support efficient combustion, dependable performance and reduced engine noise.
The integrated DOC and DPF exhaust aftertreatment system helps the engine meet EU Stage V, EPA Tier 4 and CARB Tier 4 emissions requirements.
The cooling, intake and exhaust aftertreatment components are positioned to create a compact power solution for installations where space is restricted.
Ready to Install
Kubota Diesel Power Packs provide equipment manufacturers and operators with a prepared engine solution that can reduce the development and installation work involved in integrating an industrial diesel engine.
The modular design allows the ancillary equipment to be selected for the intended application. This can help reduce installation complexity while providing access to Kubota engine service and parts support.
Applications
The suitability of the Kubota V1505 Diesel Power Pack depends on the required output, installation environment, operating speed, duty cycle and driven equipment.
Please contact Mitchell Powersystems with details of your application. Our team can help confirm the appropriate power pack specification and available equipment.
Why Buy From Mitchell Powersystems?
- Experienced Kubota industrial engine support
- Technical assistance with engine selection and specification
- Support with diesel power pack integration requirements
- Genuine Kubota parts and service support
- UK based workshop and field service capabilities
- Ongoing maintenance and aftersales support
Important Ordering Information
This product is configured according to the requirements of the intended application. The included equipment, dimensions, weight, availability and price must be confirmed before ordering.
Please contact Mitchell Powersystems with your application and installation requirements to request a quotation.
