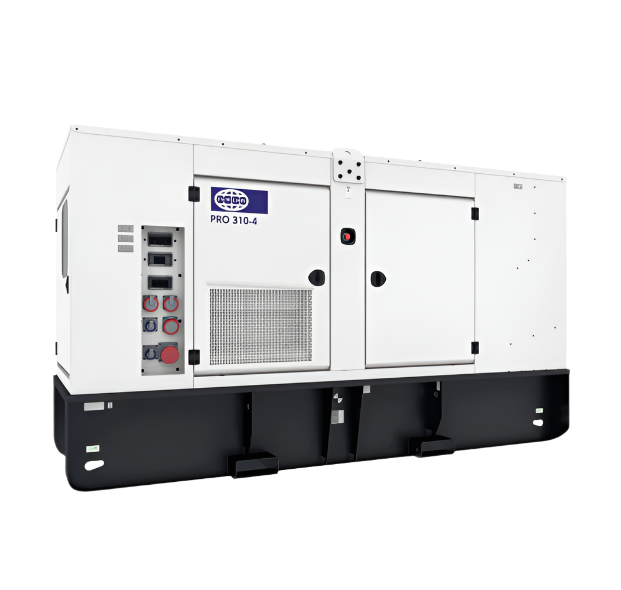

FG Wilson PRO310-4 Diesel Generator – 310 kVA Stage V Rental Power
Deliver reliable, compliant power for your toughest rental and temporary power demands with the FG Wilson PRO310-4. This robust 310 kVA diesel generator is engineered to meet EU Stage V emissions standards, making it an ideal choice for construction sites, events, utilities, and other critical applications.
Key Features:
-
Power Output: 310 kVA (Prime) / 248 kW
-
Engine: Perkins 1706J-E93TAG2, 6-cylinder turbocharged diesel
-
Fuel Tank Capacity: 667 litres for extended runtime
-
Fuel Consumption: Approx. 46.9 L/h at 75% load
-
Sound-Attenuated Galvanized Steel Canopy for quiet, durable operation
-
Advanced DeepSea DSE7320 Control Panel with LCD display and LED indicators
-
High Ambient Radiator suitable for operation up to 43°C
-
Integrated Fuel Filtration & Water Separation System for engine protection
-
Heavy-Duty Base Frame with 110% Spill Containment
Key Specifications
-
Power Output:
-
Prime: 310 kVA / 248 kW
-
Standby: 337.5 kVA / 270 kW
-
-
Engine:
-
Model: Perkins 1706J-E93TAG2
-
Displacement: 9.3 L
-
Bore x Stroke: 115 mm x 149 mm
-
Compression Ratio: 17.0:1
-
Governor Type: Electronic ECM controlled (A6E2)
-
-
Alternator:
-
Model: Leroy Somer LL5114N
-
Excitation: SHUNT
-
Protection: IP23
-
-
Frequency: 50 / 60 Hz switchable
-
Voltage Range: 220–480 V
-
Speed: 1500 / 1800 RPM
-
Fuel Consumption: Approximately 46.9 L/h at 75% load
-
Fuel Tank Capacity: 822 litres
-
Emissions Compliance: EU Stage V / Tier IV Final
-
Weight: 4,103 kg
-
Dimensions (L × W × H): 4085 × 1514 × 2277
Standard Features
-
Enclosure: Galvanized, sound-attenuated canopy designed to withstand harsh on-site conditions while minimizing noise.
-
Control Panel: DeepSea DSE7320 Auto Mains (Utility) Failure Control Module with back-lit LCD screen and LED indicators.
-
Cooling System: Radiator with high ambient capability, suitable for ambient temperatures up to 43°C.
-
Fuel System:
-
822-litre double-wall fuel tank providing approximately 25 hours of runtime at 75% load.
-
Engine-mounted primary fuel filter (10 micron) with integral water separator and water-in-fuel sensor.
-
Off-engine mounted Racor fuel water separator (4 micron) with secondary engine-mounted fuel water separator.
-
Manual push-button priming pump.
-
Auxiliary connections for customer-supplied fuel transfer with 3-way fuel transfer system, internally mounted within the bunded area.
-
Mechanical and electronic fuel gauges with control panel display.
-
Low-level fuel warning and shutdown.
-
Configurable bund level sensor with low-level warning and high-level warning/shutdown.
-
-
Mounting: Soft-mounted on a heavy-duty steel base frame with integral 110% spill containment.
-
Exhaust System: Integrated spark arresting silencer with flexible connectors in a separate compartment.
Specifications:
-
Weight: 4,103 kg
-
Dimensions (L×W×H): 4085 × 1514 × 2277 mm
-
Emissions Compliance: EU Stage V / Tier IV Final
-
Warranty: 1 year unlimited hours prime power, 2 years/500 hours standby
Reliable, efficient, and ready for rental duty — the FG Wilson PRO310-4 delivers top-tier performance wherever you need it.
