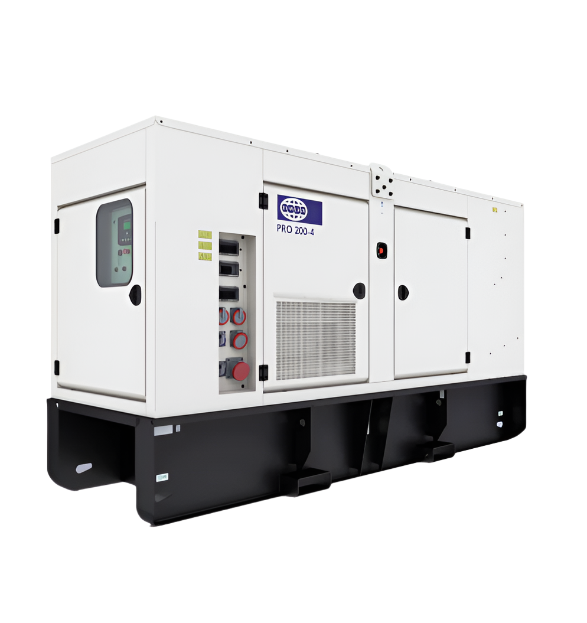

FG Wilson PRO200-4 Diesel Generator – 200 kVA Stage V Rental Power Solution

FG Wilson PRO200-4 Diesel Generator – 200 kVA Stage V Rental Power Solution

Power up your operations with the FG Wilson PRO200-4, a heavy-duty 200 kVA diesel generator built for demanding rental, construction, and temporary power environments. Fully compliant with EU Stage V emissions standards, this generator offers exceptional performance, long runtime, and low environmental impact.

---

 Key Specifications:

• Prime Power Output: 200 kVA / 160 kW

• Standby Power Output: 225 kVA / 180 kW

• Engine: Perkins 1206J-E70TTAG – 7.0L, electronic governor, Stage V compliant

• Alternator: FG Wilson LL5114F, IP23 protection

• Voltage: 220–480 V, switchable 50/60 Hz

• Fuel Tank Capacity: 822 litres

• Fuel Consumption: Approx. 32.4 L/h at 75% load

• Runtime: Up to 25 hours at 75% load

• Weight: 3,651 kg

• Dimensions (L×W×H): 4085 × 1420 × 2367 mm

 Design Features:

• Sound-Attenuated Canopy: Galvanized steel enclosure for low-noise operation and weather protection

• Control Panel: DeepSea DSE7320 AMF controller with backlit LCD and LED indicators

• Cooling System: High ambient radiator up to 43°C

• Fuel System: Dual-stage filtration with Racor separator and water-in-fuel sensors

• Spill Containment: Integral 110% bunded base frame

• Exhaust: Spark arresting silencer in isolated compartment

 Optional Add-ons:

• CE/Clipsal socket boxes with MCB & RCBO protection

• Coolant heater, PMG alternator, battery chargers

• Lube oil sump pump and anti-condensation heaters

 Warranty:

• Prime Power: 1-year unlimited hours

• Standby Use: 2-year / 500-hour coverage

Key Specifications

• Power Output:

  • Prime: 200 kVA / 160 kW

  • Standby: 225 kVA / 180 kW

• Engine:

  • Model: Perkins 1206J-E70TTAG

  • Displacement: 7.0 L

  • Bore x Stroke: 105 mm x 135 mm

  • Compression Ratio: 16.5:1

  • Governor Type: Electronic ECM Controlled

• Alternator:

  • Model: FG Wilson LL5114F

  • Excitation: SHUNT

  • Protection: IP23

• Frequency: 50 / 60 Hz switchable

• Voltage Range: 220–480 V

• Speed: 1500 / 1800 RPM

• Fuel Consumption: Approximately 32.4 L/h at 75% load

• Fuel Tank Capacity: 822 litres

• Emissions Compliance: EU Stage V / Tier IV Final

• Weight: 3,651 kg

• Dimensions (L × W × H): 4085 × 1420 × 2367 mm

 Standard Features

• Enclosure: Galvanized, sound-attenuated canopy designed to withstand harsh on-site conditions while minimizing noise.

• Control Panel: DeepSea DSE7320 Auto Mains (Utility) Failure Control Module with back-lit LCD screen and LED indicators.

• Cooling System: Radiator with high ambient capability, suitable for ambient temperatures up to 43°C.

• Fuel System:

  • 822-litre double-wall fuel tank providing approximately 25.4 hours of runtime at 75% load.

  • Engine-mounted primary fuel filter (10 micron) with integral water separator and water-in-fuel sensor.

  • Off-engine mounted Racor fuel water separator (4 micron) with secondary engine-mounted fuel water separator.

  • Manual push-button priming pump.

  • Auxiliary connections for customer-supplied fuel transfer with 3-way fuel transfer system, internally mounted within the bunded area.

  • Mechanical and electronic fuel gauges with control panel display.

  • Low-level fuel warning and shutdown.

  • Configurable bund level sensor with low-level warning and high-level warning/shutdown.

• Mounting: Soft-mounted on a heavy-duty steel base frame with integral 110% spill containment.

• Exhaust System: Integrated spark arresting silencer with flexible connectors in a separate compartment.

---

Built for Reliability. Designed for Rental.

Whether you’re supporting critical infrastructure or powering a remote worksite, the FG Wilson PRO200-4 delivers dependable performance, emissions compliance, and easy operation.
