Allison Transmission Main Valve Body Kit Six-Speed 29567617
6 SPEED KIT TIDB MODS – 29567617
- Helps control transmission shifts
- Directs fluid to all areas of the transmission for proper operation, cooling, and lubrication
- Includes the components to service the valve body
-
The Main Valve Body Kit helps control transmission shifts and contains all of the internal components to service the valve body.

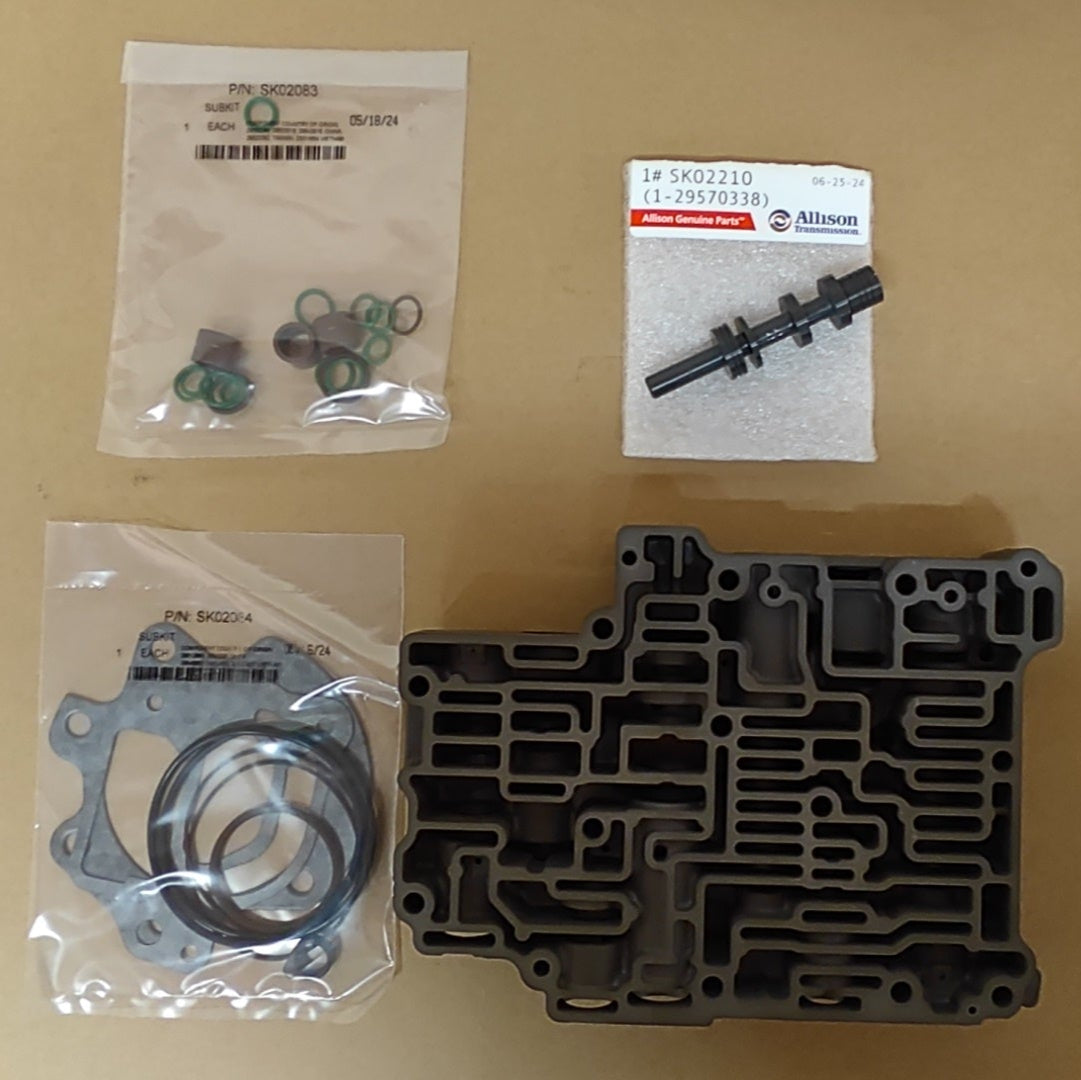

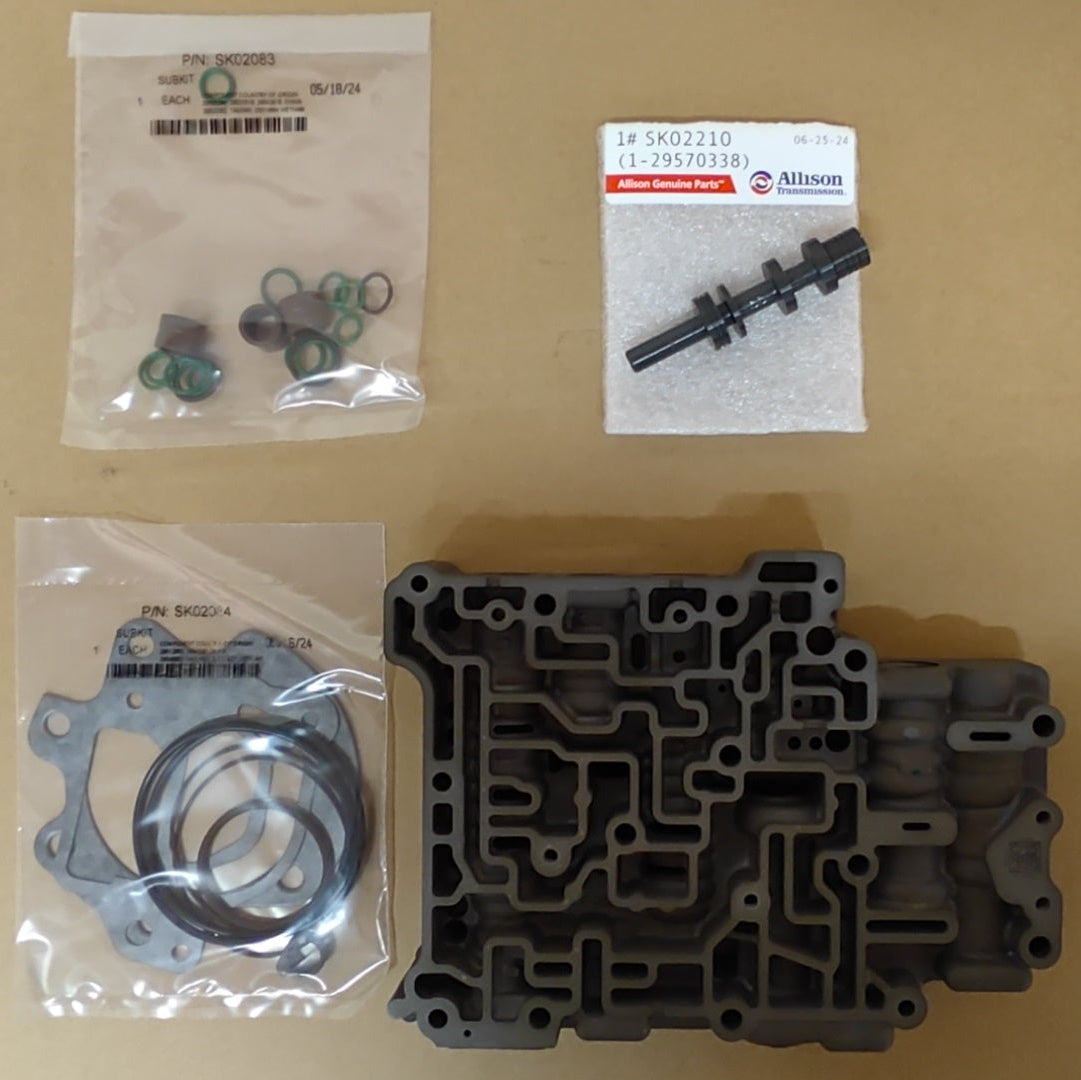

INCLUDES
- (1) 23019664 O-ring, Drain Plug
- (3) 23046376 Seal, Face
- (1) 29503382 O-ring, 14.0 mm ID
- (1) 29503384 O-ring, 18.8 mm ID
- (2) 29507437 O-ring, Filter Cover
- (1) 29512863 O-ring, Standoff, 47.2 mm ID
- (1) 29524449 Gasket, Filter Cover
- (6) 29535518 O-ring, 13.0 mm ID
- (1) 29537066 Gasket, Suction Filter
- (6) 29542976 O-ring, 10.5 mm ID
- (1) 29542991 Seal, Face
- (2) 29548953 O-ring, Filter Cover
- (1) 29563501 Valve, Main Regulator

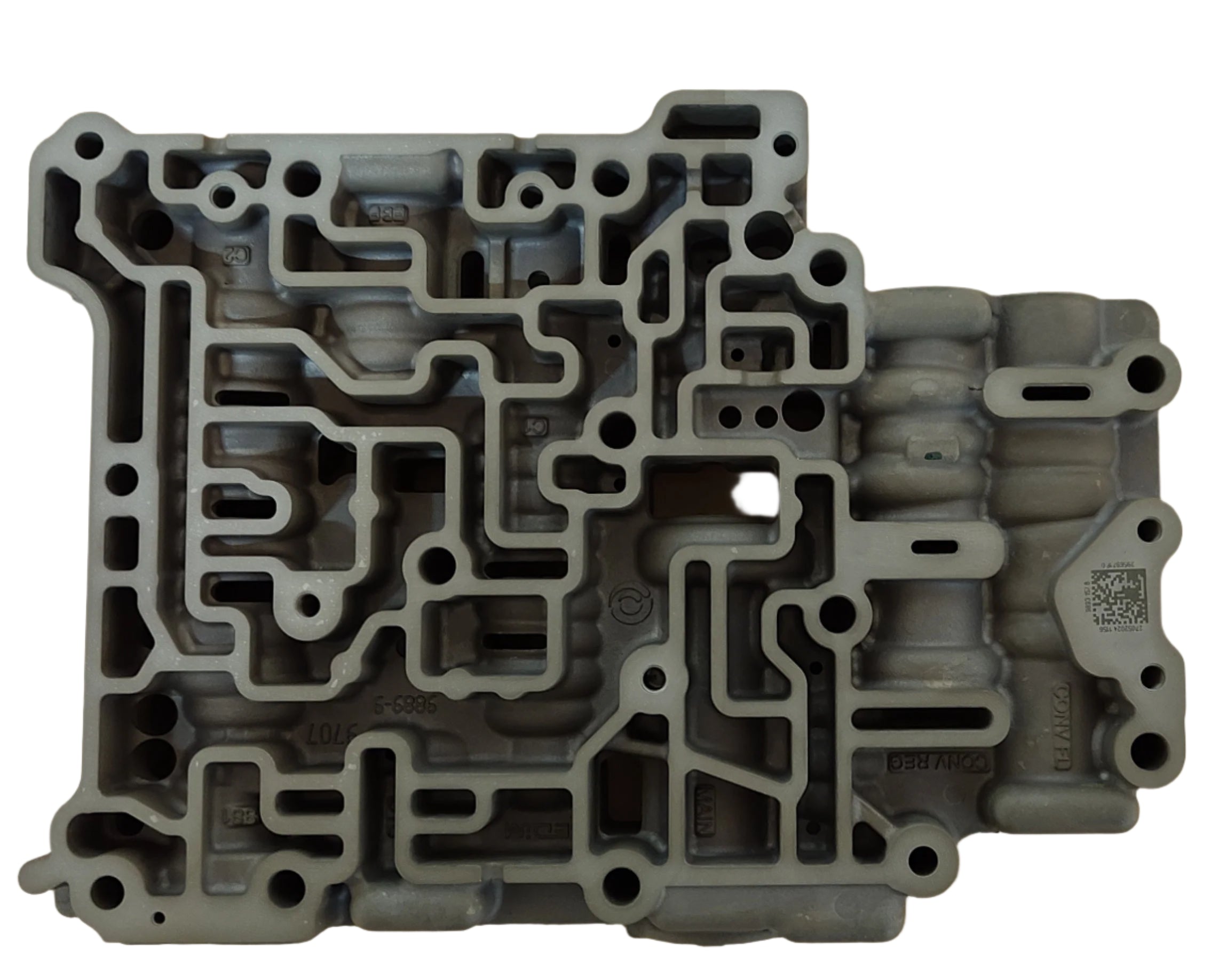

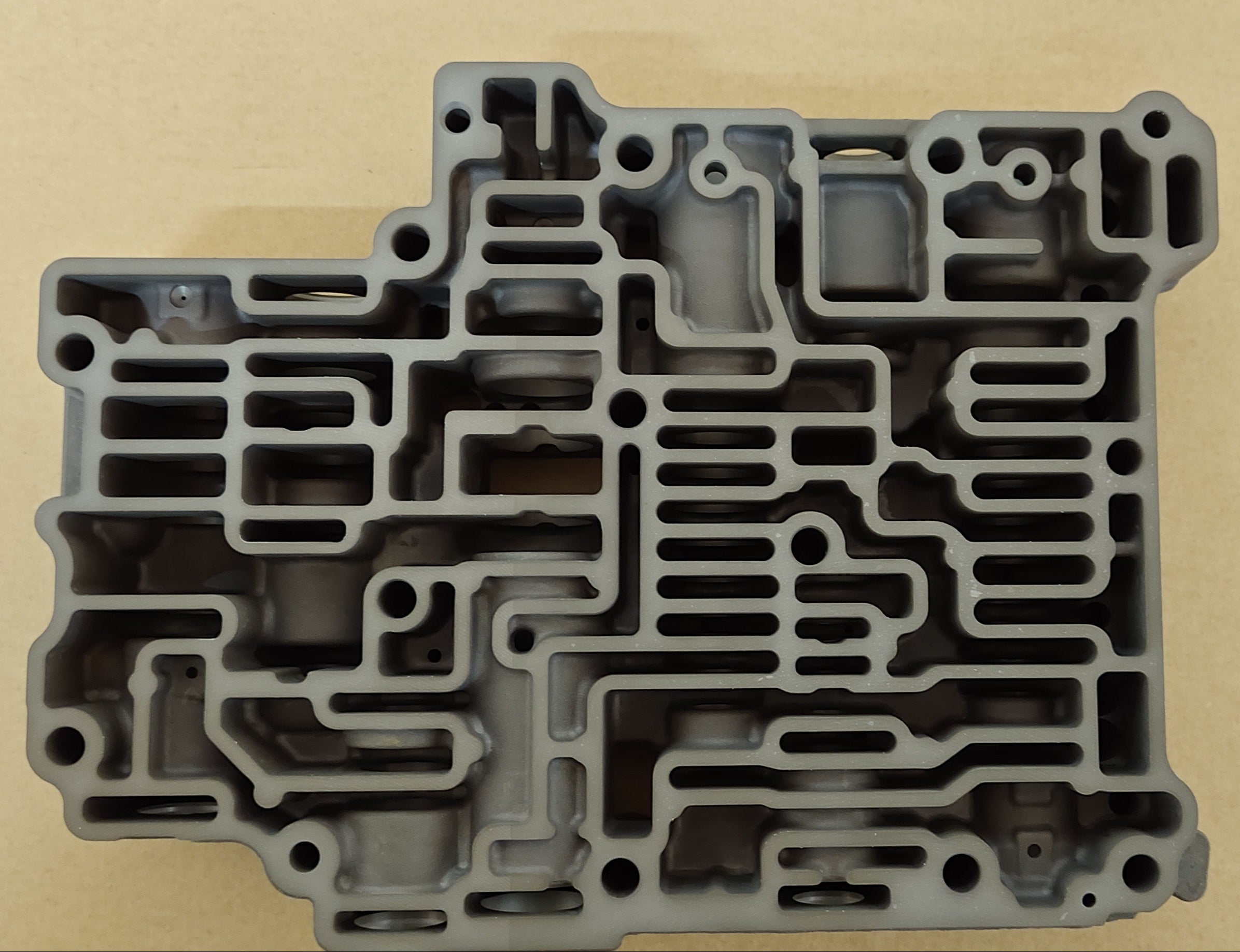

- (1) 29563951 Body, Main Valve, 6-Speed
-
The kit is controlled either by the transmission control module (TCM) or the electric control unit based on input info with no mechanical leakage. A genuine kit built to original factory specifications reduces the possibility of no range attainment and protects against transmission failure.
- Helps to control transmission shifts
- Smooth transmission operation
- Cost-effective maintenance
- Allison Genuine Parts™
-
Genuine Allison Transmission product.Mitchell Powersystems are an authorised Allison Transmission distributor for the UK.Please message us with your transmission serial number to check compatibility.
