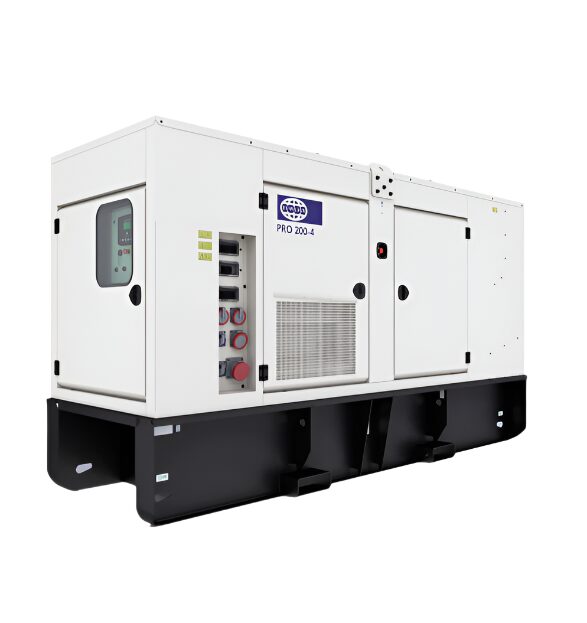

FG Wilson PRO200-4 Diesel Generator – 200 kVA Stage V Rental Power Solution
Power up your operations with the FG Wilson PRO200-4, a heavy-duty 200 kVA diesel generator built for demanding rental, construction, and temporary power environments. Fully compliant with EU Stage V emissions standards, this generator offers exceptional performance, long runtime, and low environmental impact.
Key Specifications:
Prime Power Output: 200 kVA / 160 kW
Standby Power Output: 225 kVA / 180 kW
Engine: Perkins 1206J-E70TTAG – 7.0L, electronic governor, Stage V compliant
Alternator: FG Wilson LL5114F, IP23 protection
Voltage: 220–480 V, switchable 50/60 Hz
Fuel Tank Capacity: 822 litres
Fuel Consumption: Approx. 32.4 L/h at 75% load
Runtime: Up to 25 hours at 75% load
Weight: 3,651 kg
Dimensions (L×W×H): 4085 × 1420 × 2367 mm
Design Features:
Sound-Attenuated Canopy: Galvanized steel enclosure for low-noise operation and weather protection
Control Panel: DeepSea DSE7320 AMF controller with backlit LCD and LED indicators
Cooling System: High ambient radiator up to 43°C
Fuel System: Dual-stage filtration with Racor separator and water-in-fuel sensors
Spill Containment: Integral 110% bunded base frame
Exhaust: Spark arresting silencer in isolated compartment
Optional Add-ons:
CE/Clipsal socket boxes with MCB & RCBO protection
Coolant heater, PMG alternator, battery chargers
Lube oil sump pump and anti-condensation heaters
Warranty:
Prime Power: 1-year unlimited hours
Standby Use: 2-year / 500-hour coverage
Key Specifications
Power Output:
Prime: 200 kVA / 160 kW
Standby: 225 kVA / 180 kW
Engine:
Model: Perkins 1206J-E70TTAG
Displacement: 7.0 L
Bore x Stroke: 105 mm x 135 mm
Compression Ratio: 16.5:1
Governor Type: Electronic ECM Controlled
Alternator:
Model: FG Wilson LL5114F
Excitation: SHUNT
Protection: IP23
Frequency: 50 / 60 Hz switchable
Voltage Range: 220–480 V
Speed: 1500 / 1800 RPM
Fuel Consumption: Approximately 32.4 L/h at 75% load
Fuel Tank Capacity: 822 litres
Emissions Compliance: EU Stage V / Tier IV Final
Weight: 3,651 kg
Dimensions (L × W × H): 4085 × 1420 × 2367 mm
Standard Features
Enclosure: Galvanized, sound-attenuated canopy designed to withstand harsh on-site conditions while minimizing noise.
Control Panel: DeepSea DSE7320 Auto Mains (Utility) Failure Control Module with back-lit LCD screen and LED indicators.
Cooling System: Radiator with high ambient capability, suitable for ambient temperatures up to 43°C.
Fuel System:
822-litre double-wall fuel tank providing approximately 25.4 hours of runtime at 75% load.
Engine-mounted primary fuel filter (10 micron) with integral water separator and water-in-fuel sensor.
Off-engine mounted Racor fuel water separator (4 micron) with secondary engine-mounted fuel water separator.
Manual push-button priming pump.
Auxiliary connections for customer-supplied fuel transfer with 3-way fuel transfer system, internally mounted within the bunded area.
Mechanical and electronic fuel gauges with control panel display.
Low-level fuel warning and shutdown.
Configurable bund level sensor with low-level warning and high-level warning/shutdown.
Mounting: Soft-mounted on a heavy-duty steel base frame with integral 110% spill containment.
Exhaust System: Integrated spark arresting silencer with flexible connectors in a separate compartment.
Built for Reliability. Designed for Rental.
Whether you’re supporting critical infrastructure or powering a remote worksite, the FG Wilson PRO200-4 delivers dependable performance, emissions compliance, and easy operation.
