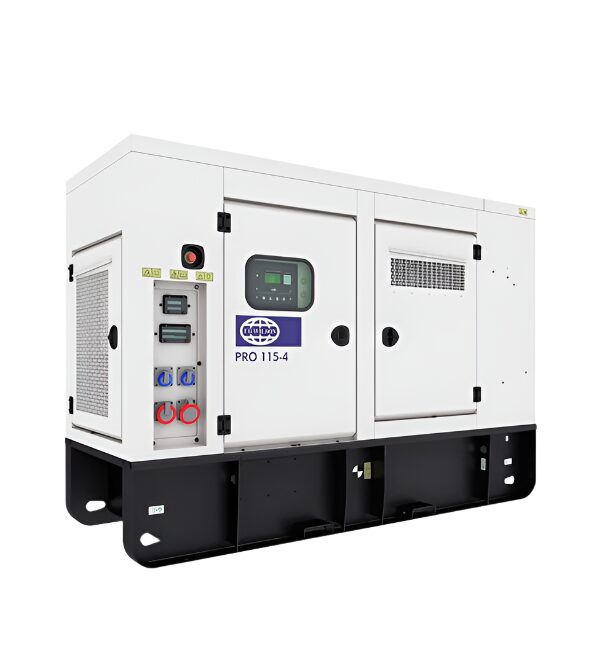

FG Wilson PRO115-4 Stage V Diesel Generator – 115 kVA Rental Power Solution
Ensure dependable power delivery with the FG Wilson PRO115-4, a high-performance 115 kVA diesel generator engineered specifically for rental and temporary applications. Designed to meet EU Stage V emissions standards, this unit combines efficiency, durability, and compliance – ideal for use across construction sites, events, utilities, and more.
Key Features:
Rated Power Output: 115 kVA / 92 kW (Prime)
Engine: Perkins 1204J-E44TTAG2 – Stage V compliant, turbocharged
Alternator: Leroy Somer LL3114F, high-efficiency output
Voltage Range: 127–480V, 50/60 Hz switchable
Control Panel: DeepSea DSE7320 auto mains failure controller
Fuel Tank: 518-litre dual-wall base tank with 110% bund
Fuel Consumption: Approx. 20.4 L/h at 75% load
Cooling System: High ambient-rated radiator with vertical discharge
Enclosure: Galvanized, sound-attenuated canopy for reduced noise and superior protection
Dimensions: 2970 × 1150 × 2076 mm
Weight (wet): 2,527 kg
Designed for Demanding Environments:
Heavy-duty rental specification build
Integrated spark arresting exhaust system
Secure lockable access panels
Forklift pockets and lifting frame for ease of transport
Multiple socket outlet and connection options (customisable)
Key Specifications
Power Output:
Prime: 115 kVA / 92 kW
Standby: 120 kVA / 96 kW
Engine:
Model: Perkins 1204J-E44TTAG2
Displacement: 4.4 L
Bore x Stroke: 105 mm x 127 mm
Compression Ratio: 18.23:1
Governor Type: Electronic ECM Controlled
Alternator:
Model: Leroy Somer LL3114F
Excitation: SHUNT
Protection: IP23
Frequency: 50 / 60 Hz switchable
Voltage Range: 127–480 V
Speed: 1500 / 1800 RPM
Fuel Consumption: Approximately 20.4 L/h at 75% load
Fuel Tank Capacity: 518 litres
Emissions Compliance: EU Stage V / Tier IV Final
Weight: 2,527 kg
Dimensions (L × W × H): 2970 × 1150 × 2076 mm
Standard Features
Enclosure: Galvanized, sound-attenuated canopy designed to withstand harsh on-site conditions while minimizing noise.
Control Panel: DeepSea DSE7320 Auto Mains (Utility) Failure Control Module with back-lit LCD screen and LED indicators.
Cooling System: Radiator with high ambient capability, suitable for ambient temperatures up to 43°C.
Fuel System: 518-litre double-wall fuel tank providing approximately 25.4 hours of runtime at 75% load.
Mounting: Soft-mounted on a heavy-duty steel base frame with integral 110% spill containment.
Exhaust System: Integrated spark arresting silencer with flexible connectors.
Warranty Coverage:
Prime Power: 1-year unlimited hours
Standby Use: 2-year / 500-hour coverage
Perfect for Rental Fleets, Construction, and Events
Backed by FG Wilson’s global reputation for quality and reliability, the PRO115-4 offers a cost-effective, emissions-compliant solution for mission-critical temporary power.
